제품 소개C형 여성 커넥터

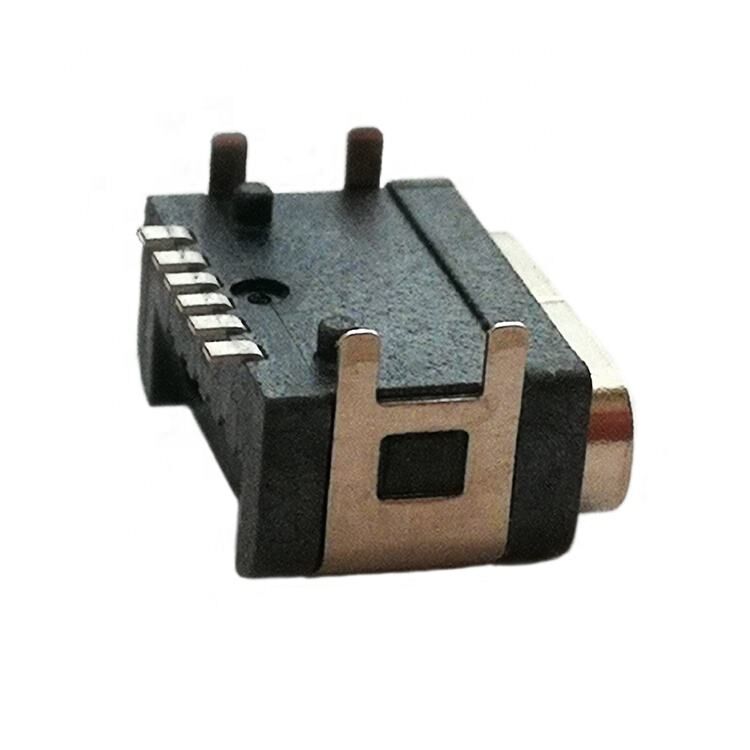

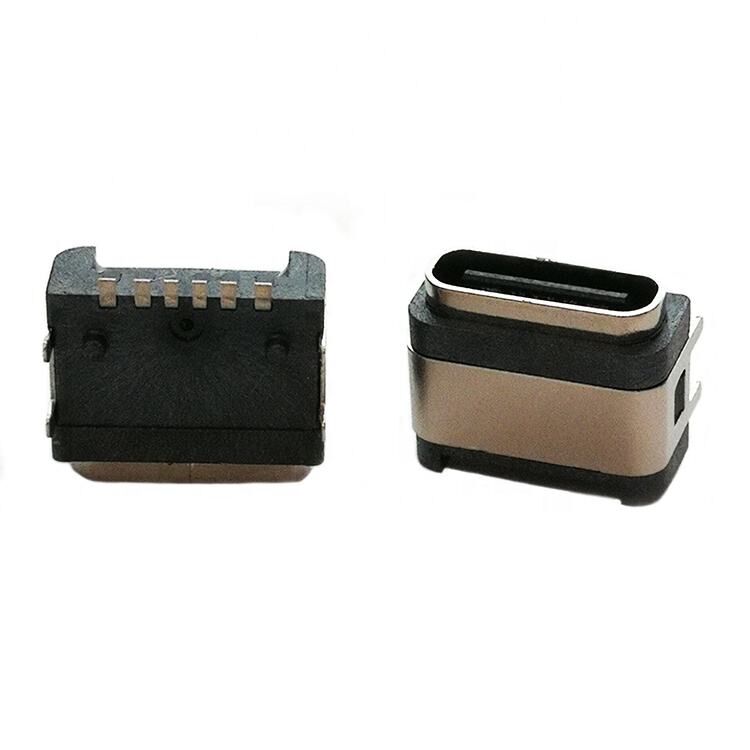

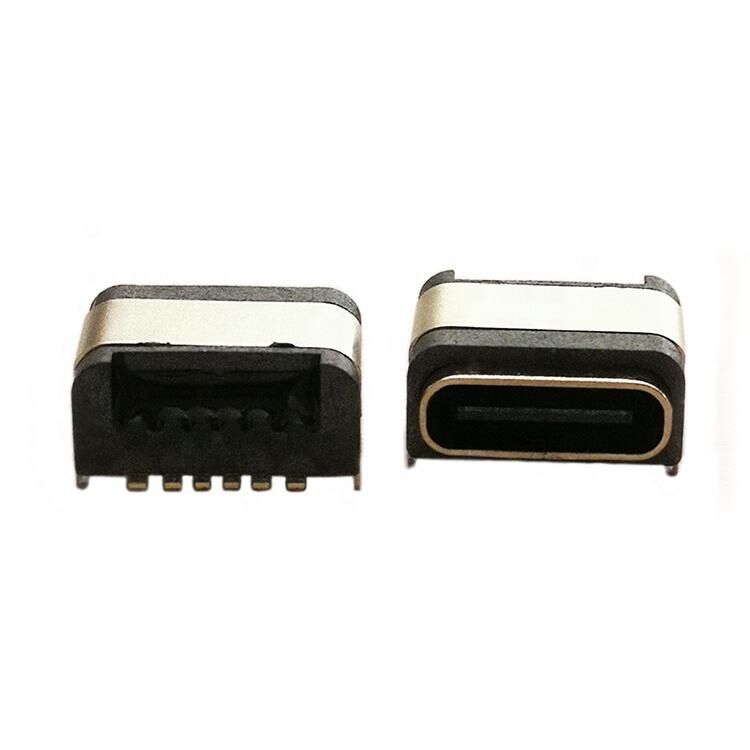

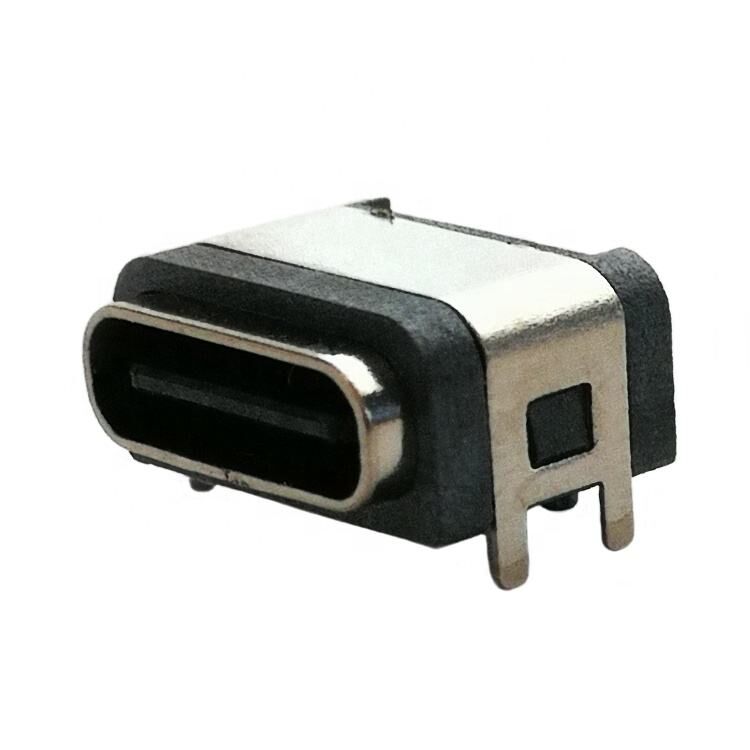

IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector

인증
중국 Shenzhen Xietaikang Precision Electronic Co., Ltd. 인증
중국 Shenzhen Xietaikang Precision Electronic Co., Ltd. 인증
제가 지금 온라인 채팅 해요

IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector

IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector
IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector

큰 이미지 :  IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector

제품 상세 정보:
원래 장소: 중국 광동
브랜드 이름: XTK
인증: CE,SGS,ROHS,ISO9001
모델 번호: USB C형
결제 및 배송 조건:
최소 주문 수량: 1000개
가격: Negotiable price
포장 세부 사항: 진공 포장, 판지에 있는 상자
배달 시간: 5~7일
지불 조건: L/C (신용장), 전신환, 페이리알
공급 능력: 1KK PC

IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector

설명
모델 번호: 타입-C 연결기 연락처 수: 6개 핀
성별: 여성 주택: PA10T (G.F30%)
껍데기: SUS304R-1/2H , 니켈 도금 0.25mm 내구성: 10000이지 사이클

IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector











Product Description

Product Description
Waterproof USB Type C Connector, Female, 6 Pin, DIP+SMD, Horizontal, Surface Mount.
Mating Force
5N-20N
Unmating Force
6N-20N
Current Rating
3A
Contact Resistance
30mΩ Max
Insulation Resistance
100mΩ Min
Withstanding Voltage
AC 100V

IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector 0IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector 1IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector 2

Payment term and delivery



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.



Our service



1. the series of product specifications are complete, but also tailor-made.

2. import equipment with a high degree of automation and timely delivery. Usually 7-10 days.

3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with

     the quality and standard production control. Product quality assurance through UL-certified.

4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive

5. the quality is safe and reliable, and the price is competitive.



Product Application



USB 3.1 is the USB-based latest transmission standard. Compared to the previous USB 3.0, the new USB 3.1 increases the bandwidth while also greatly improving the encoding rate. There are three interface standards for USB 3.1, namely USB Type A, USB Type B, and USB Type C. Due to various advantages, USB Type-C has become the most promising interface standard for unifying each interface.



Competitive Advantages



1, Strict shipping ,100% tested before delivery

2, we also can provide the customized products as the request of clients

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

4, samples can be provided for free in 1-3 days .

5, More than 10 year's experience in the electronic business.



FAQ



1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays).



2. Can I buy samples placing orders?
- Yes. In general we provide free sample up to 100pc, you will find the free sample link from our shop.



3. What is your lead time?
- All our products are produced to order.
- For urgent shipment requirement, we will check our inventory and production schedule and reply to you within 24 hours..



4. What is your payment term?
- We are Trade Assurance supplier.
- In general, our payment term is 30% downpayment upon order to start production, remaining payment will be settled before shipment.



5. What is the shipping method?
- By default, it could be shipped by air or by express (EMS, UPS, DHL, TNT, FEDEX and etc) carried by Alibaba global logistic service.
- If you want us to use your own forwarder/express account, please let us know before shipment.



6. How do you make our business long-term and good relationship?
- Our first principle is to provide good and stable quality products; accompanied with professional service.
